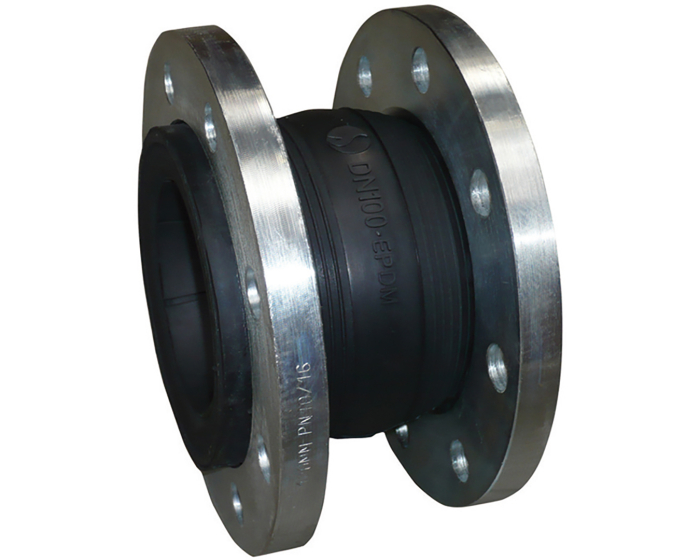

This 1501 series elastomeric expansion joint, galvanised steel flanges, EPDM single bellows, hardened steel cable, PN10 flange connection for water supply and distribution networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/4 |
| Flange or fitting material | Electro-zinc plated steel |
| Application | Water supply / Irrigation / Watering |
| DN | DN32 - 1''1/4 |
| Face to Face (mm) | 95.0 |
| Fluid | Cold water |
| Body material | EPDM |
| PS (bar) | 16 |
| Connections | With rotating flanges PN10/16 |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| With rotating flanges PN10/16 EPDM DN32 - 1''1/4 | 1501032 | S1011490 |
€28.84
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN40 - 1''1/2 | 1501040 | S1011491 |
€28.84
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN50 - 2'' | 1501050 | S1011492 |
€28.84
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN65 - 2''1/2 | 1501065 | S1011493 |
€35.19
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN80 - 3'' | 1501080 | S1011494 |
€40.73
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN100 - 4'' | 1501100 | S1011495 |
€49.54
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN125 - 5'' | 1501125 | S1011496 |
€70.53
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN150 - 6'' | 1501150 | S1011497 |
€84.80
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN200 - 8'' | 1501200 | S1011498 |
€136.07
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN250 - 10'' | 1501250 | S1011499 |
€201.36
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN300 - 12'' | 1501300 | S1011500 |
€244.84
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN350 - 14'' | 1501350 | S1011501 |
€393.07
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN400 - 16'' | 1501400 | S1011502 |
€487.79
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN450 - 18'' | 1501450 | S1011503 |
€533.06
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN500 - 20'' | 1501500 | S1011504 |
€706.76
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM DN600 - 24'' | 1501600 | S1011505 |
€995.79
(excl. btw)
|
add to cart |
